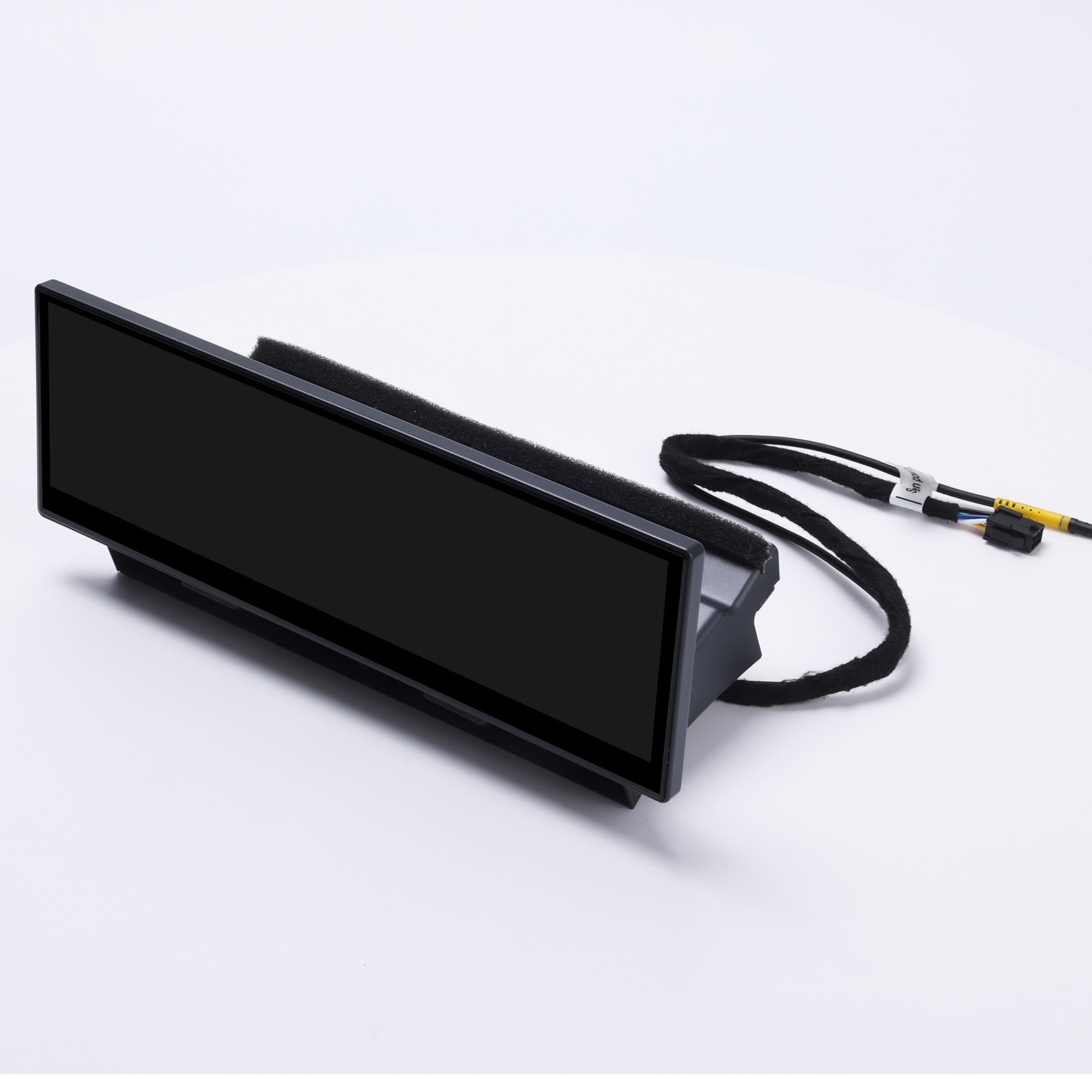

Product Overview
The S11 10.88‑inch instrument cluster is specially designed for Tesla Model 3, Model 3 Highland, Model Y, Model Y Juniper and Cybertruck. It solves the pain point of checking driving data only on the central touchscreen. Via CAN‑Bus communication, it synchronizes original‑car real‑time data without interfering with factory vehicle functions. It supports touch‑screen operation and native steering‑wheel button control, built‑in wireless CarPlay, Android Auto, Huawei HiCar and screen mirroring. Extra safety features including blind‑spot monitoring and hands‑off reminder are available. OTA wireless firmware update keeps adding new functions. An optional front‑view camera further improves driving safety. The unit reserves the original air vent with full directional adjustment. Non‑destructive plug‑and‑play wiring fits both Intel and AMD Tesla onboard systems.
Key Features

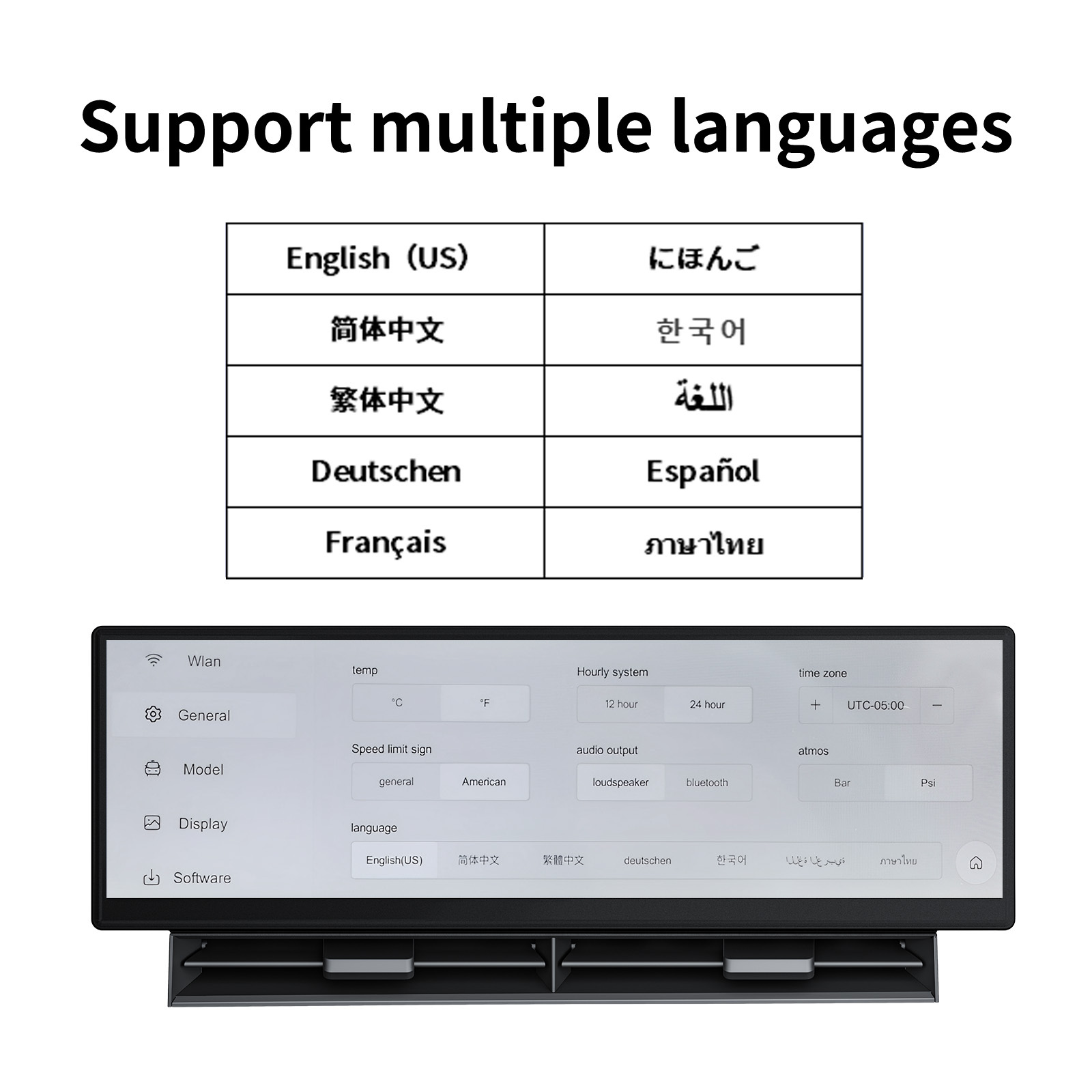

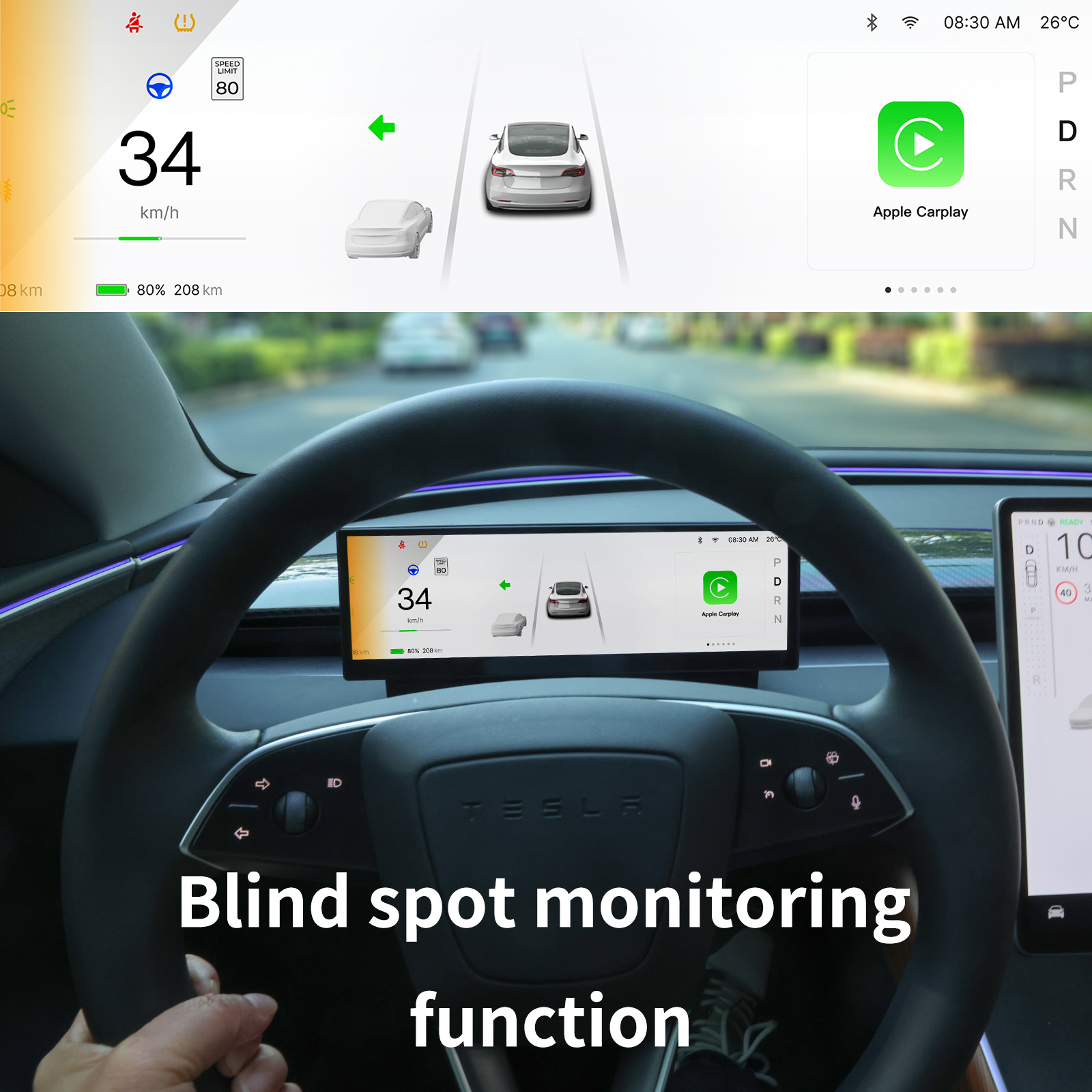

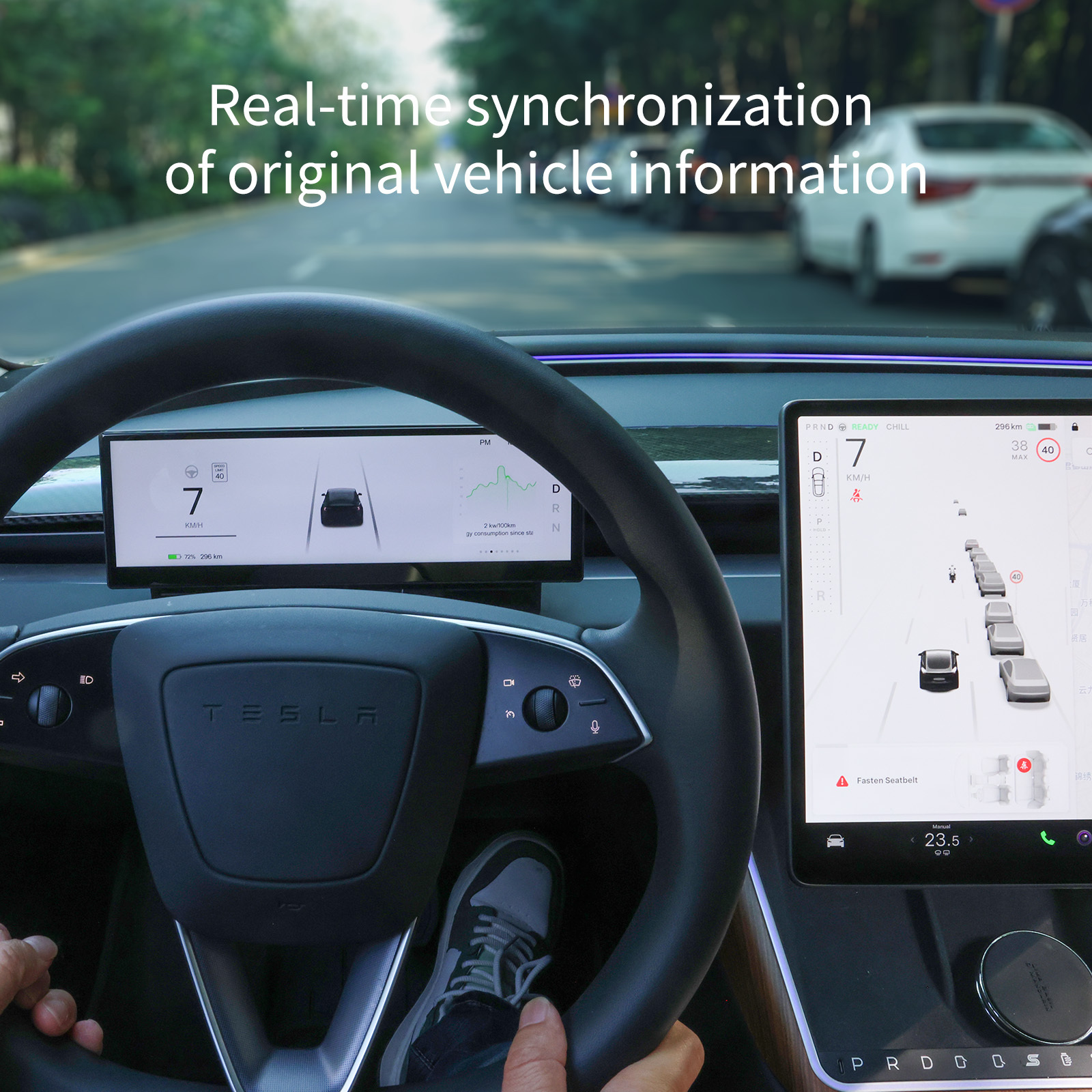

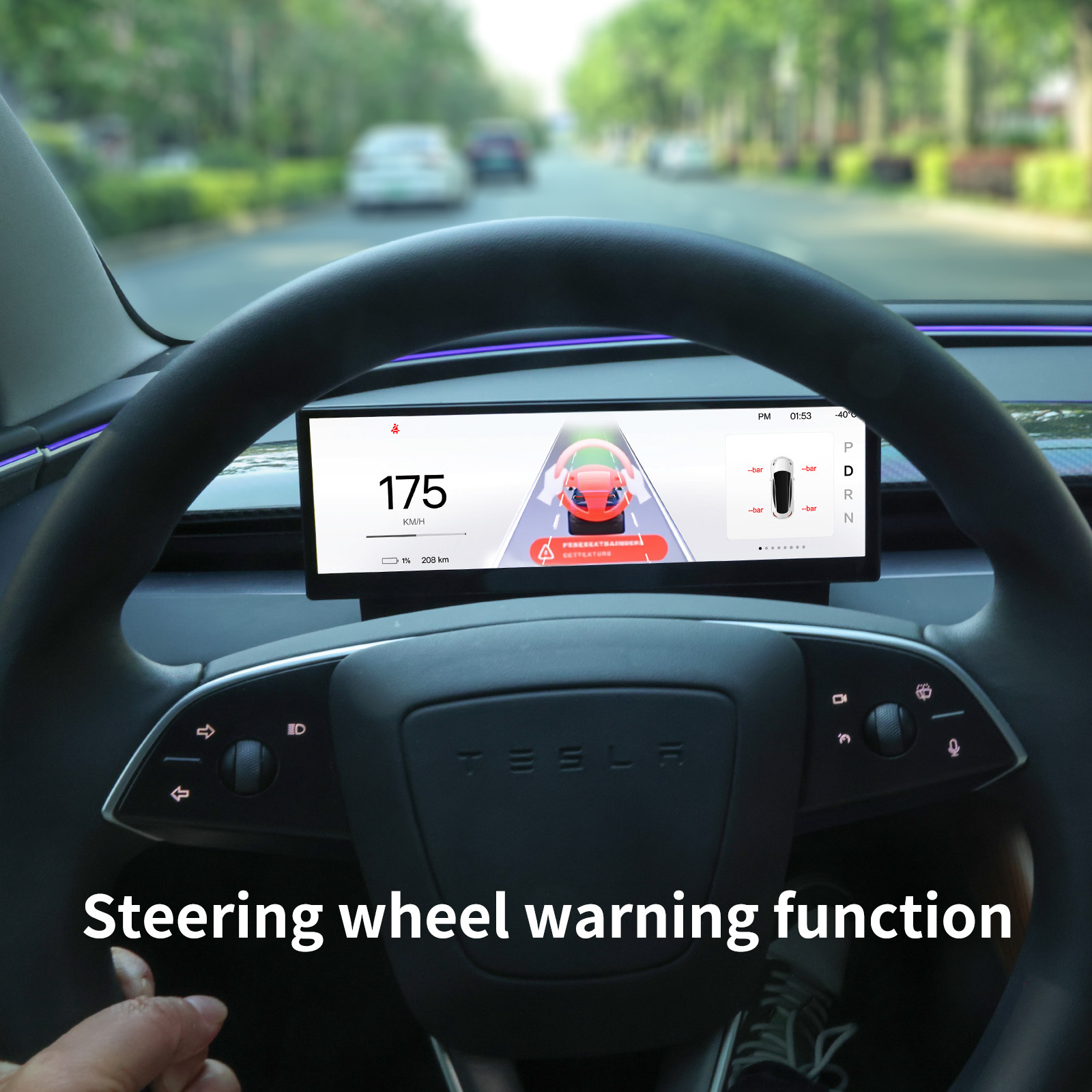

✅ Real‑time Original‑car Data Sync CAN‑Bus reads vehicle signals to display speed, gear position, remaining range, battery level, tire pressure, light status and more. Supports FSD hands‑off reminder, blind‑spot warning (yellow flash for approaching vehicles; red flash when turn signal is activated), and Rainbow Road visualization. Multiple unit options: ℃/℉, Bar/Psi, 12/24‑hour time format, multi‑language & time‑zone settings.
✅ Wireless Smart Phone Connectivity
- Wireless Apple CarPlay
- Wireless Android Auto
- Huawei HiCar
- AirPlay & Miracast screen mirroring Connect via Bluetooth and Wi‑Fi. Access navigation, calls and music directly on the dashboard screen.

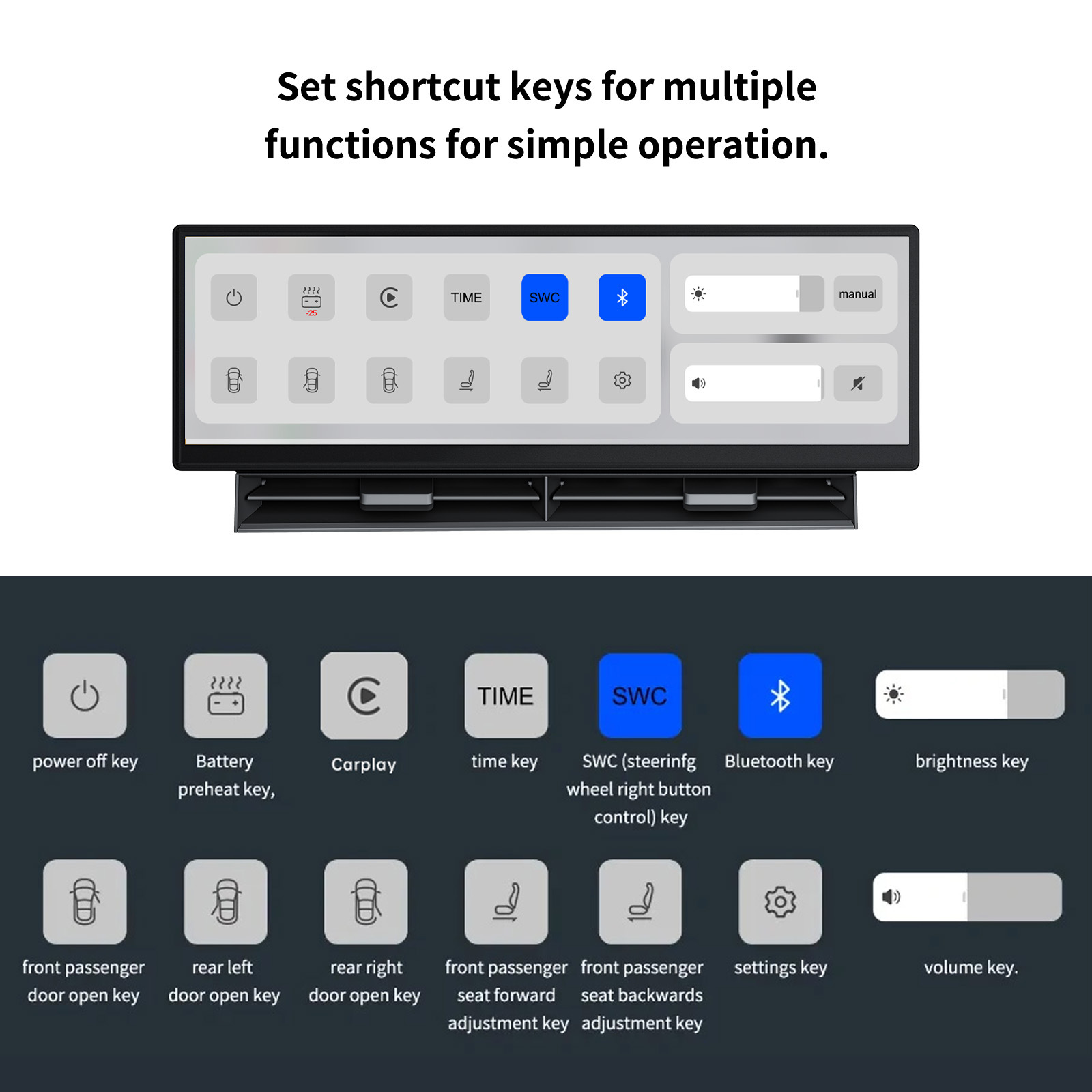

✅ Dual Control Solution Intuitive touch‑screen tap & swipe. Reuse factory steering‑wheel scroll buttons for return, confirm and menu switching for safer driving. Pull‑down quick‑access panel for power off, battery preheat, door & seat adjustment, brightness, volume and CarPlay shortcut.

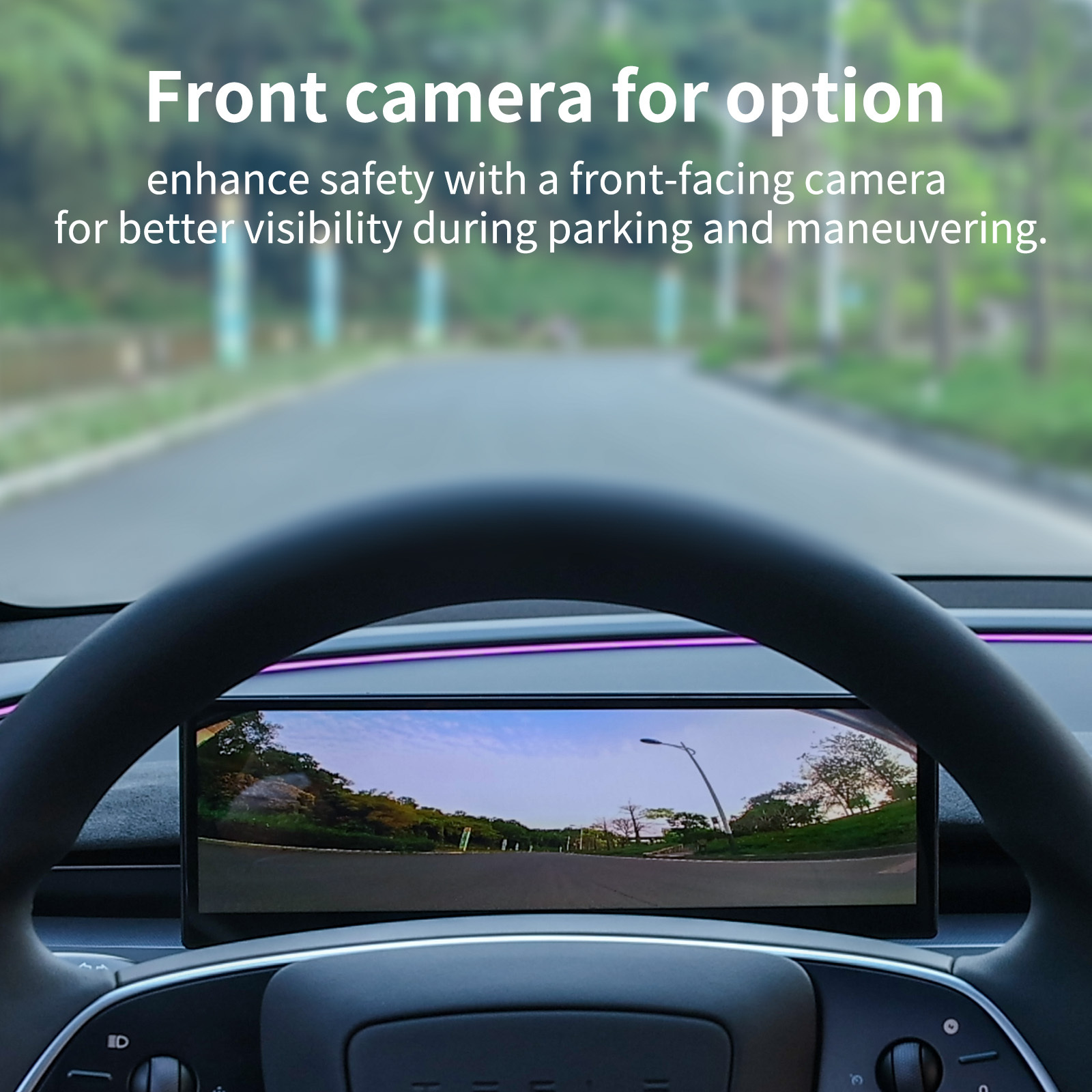

✅ Optional Front‑View Camera Add‑on front‑view camera for forward vision display. Shortcut via steering‑wheel button to activate front camera view, ideal for narrow roads and tight intersections.
✅ OTA Wireless Upgrade Connect to your phone Wi‑Fi hotspot to perform OTA updates for application and CAN‑MCU firmware. Gain new features without disassembly. Do NOT cut power or network during upgrade to avoid black‑screen failure.

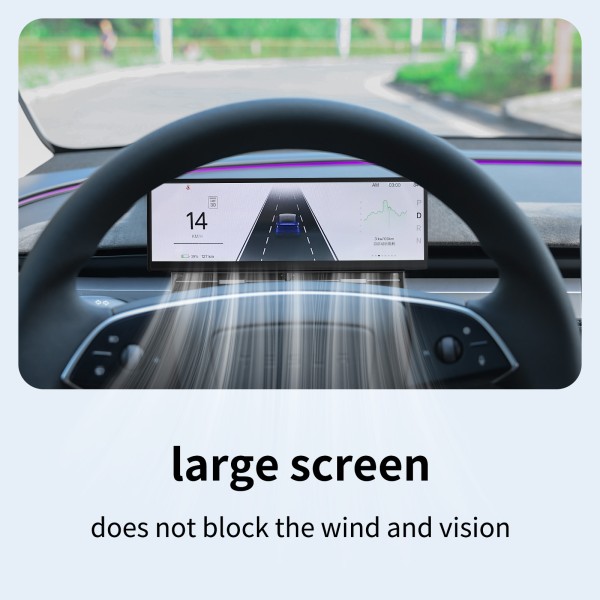

✅ Non‑destructive Plug‑and‑Play Installation Complete installation toolkit included. Dedicated wiring harness for Intel and AMD systems. Direct plug‑in connection, no wire‑cutting, no modification to original vehicle circuits. Factory air‑vent is retained with full‑direction adjustment.

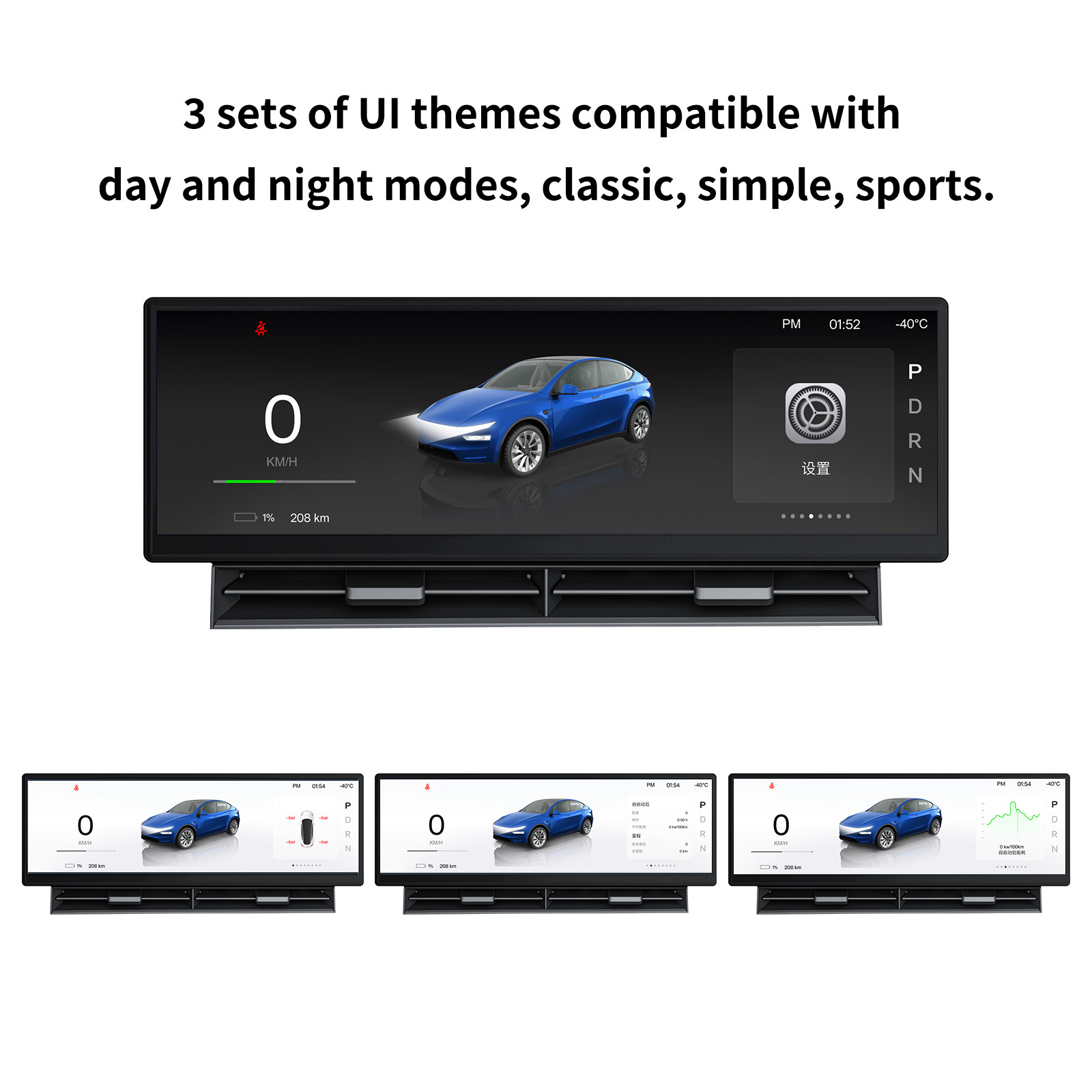

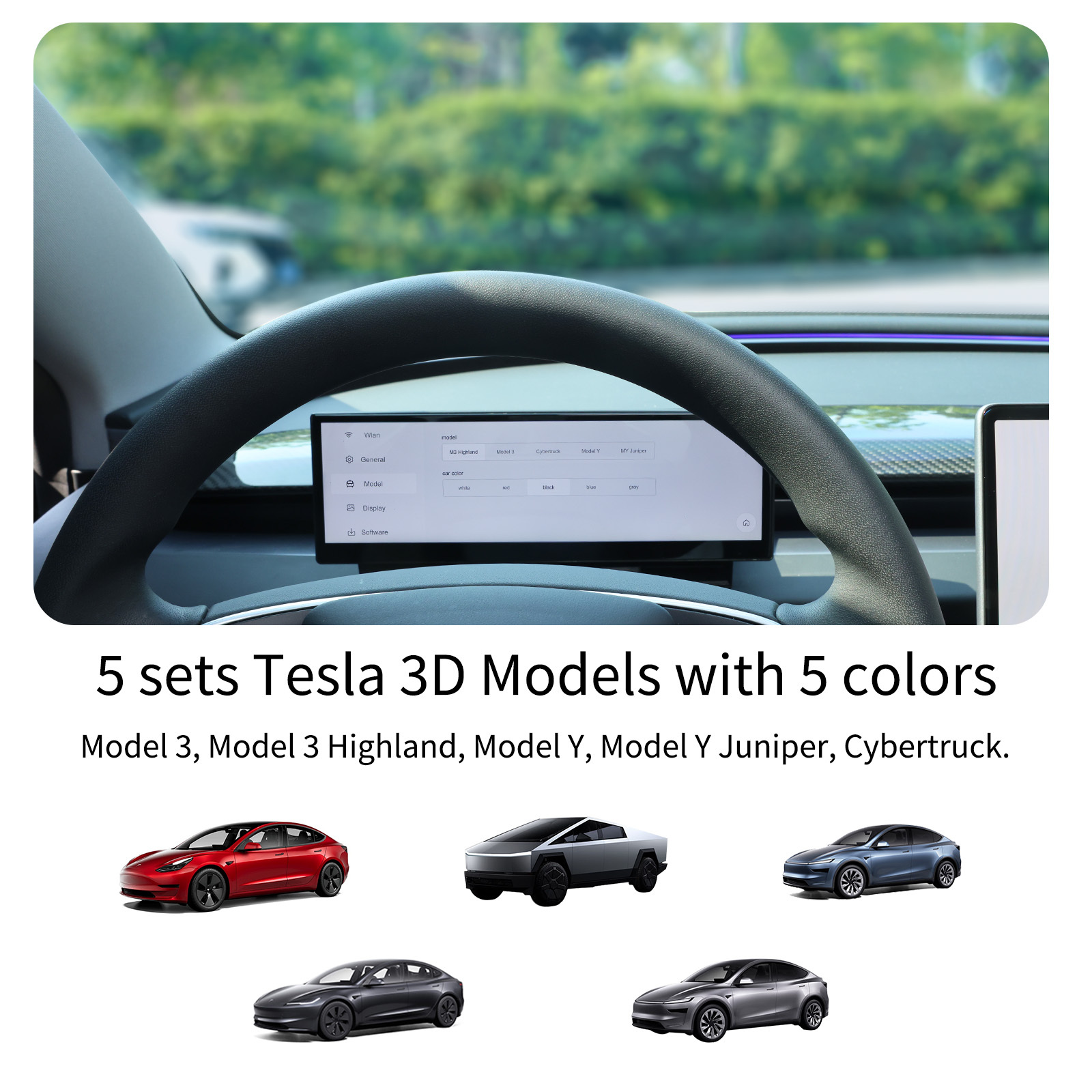

✅ Customizable UI Display 5 sets of Tesla 3D vehicle models in 5 color options. Day / Night / Auto display modes. Full‑screen & half‑screen view switchable.

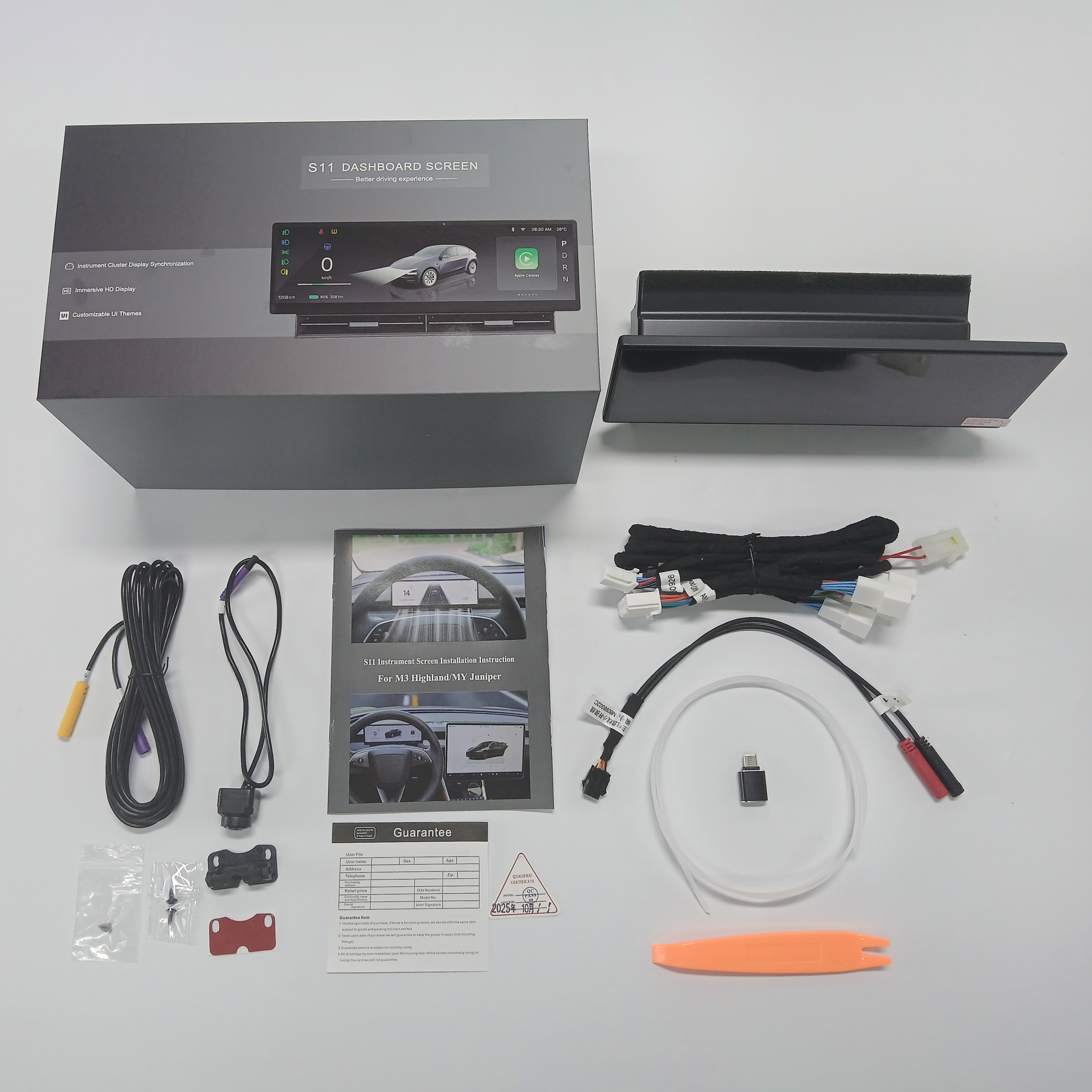

Package Contents
1 × Dashboard Screen Host 1 × Power Wiring Harness 1 × Pry Removal Tool 1 × USB Driver 1 × Adhesive Tape 1 × Threading Routing Tool
Note: Front‑view camera is sold separately as optional accessory.
Important Notes
- Confirm whether your Tesla is equipped with Intel or AMD system before installation and use the matching harness.
- Never disconnect power or Wi‑Fi during OTA upgrade, otherwise black‑screen issue may occur.
- Professional installation is highly recommended. Damage caused by improper self‑disassembly is not covered under warranty.
