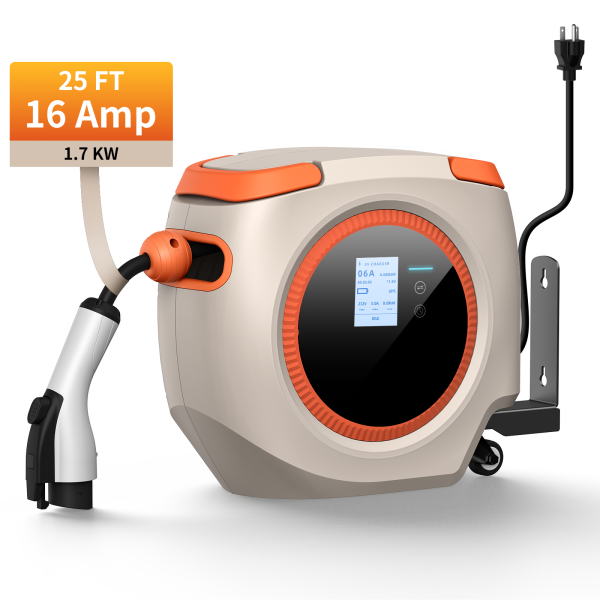

US Standard Retractable EV Charger

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Introduction

This portable EV‑AC charger features automatic retractable cable, compact and movable for home & temporary outdoor charging. IP65 weather‑proof rating.

Main Features

Auto‑retract cable, anti‑tangling, easy storage
APP (Tuya) remote control: charging status, schedule & energy data
Plug‑and‑play; 5‑level adjustable current: 6A‑8A‑10A‑13A‑16A
1‑12h delay charging function
Multi‑safety protection: over‑voltage, over‑current, over‑heat, leakage & short‑circuit
LED screen & indicator light for status viewing
Wide compatibility for most EVs

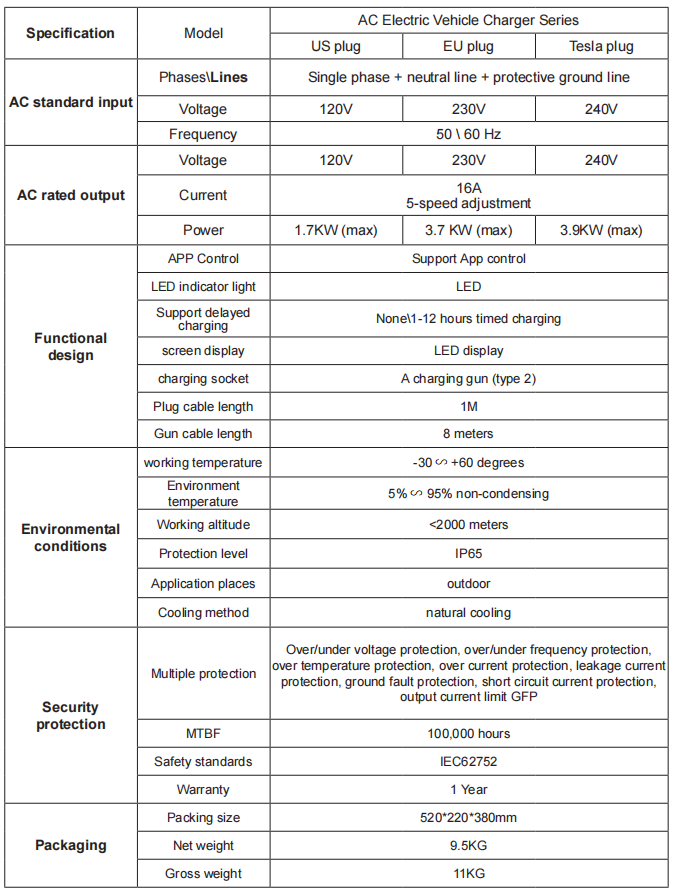

Key Specifications

Input:120V/230V/240V, 50/60Hz, single‑phase
Max output:1.7kW(120V)/3.7kW(230V)/3.9kW(240V), max 16A
Gun cable:8m; Power cord:1m
Working temp:‑30℃~+60℃；Protection:IP65
Net weight:9.5KG｜1‑year warranty

Basic Operation

Plug in power supply, unit runs self‑check
Adjust current or set delayed charging
Connect charging gun to EV and start charging
After charging, retract cable and disconnect power

Warning

‑ Do not use with damaged cables. Ensure proper grounding. ‑ High‑voltage inside. Non‑professionals must not open the housing. ‑ Use in well‑ventilated areas.
